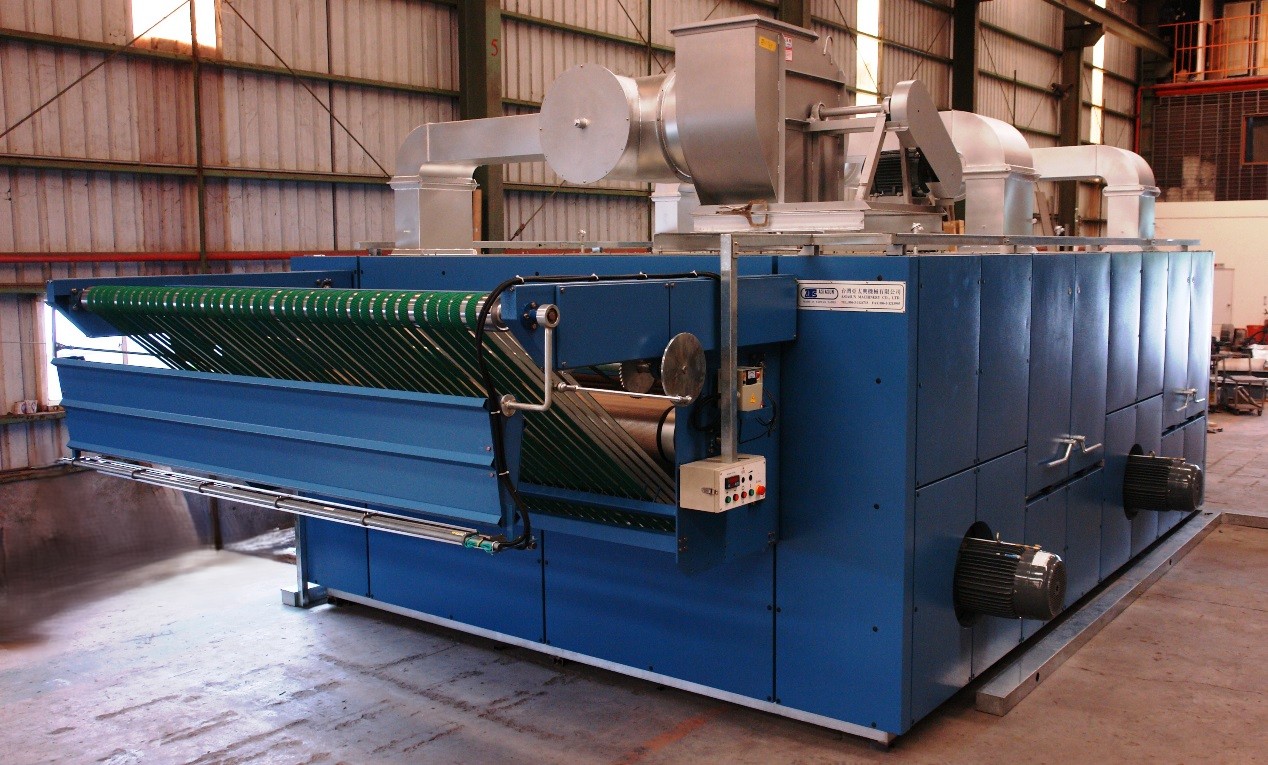

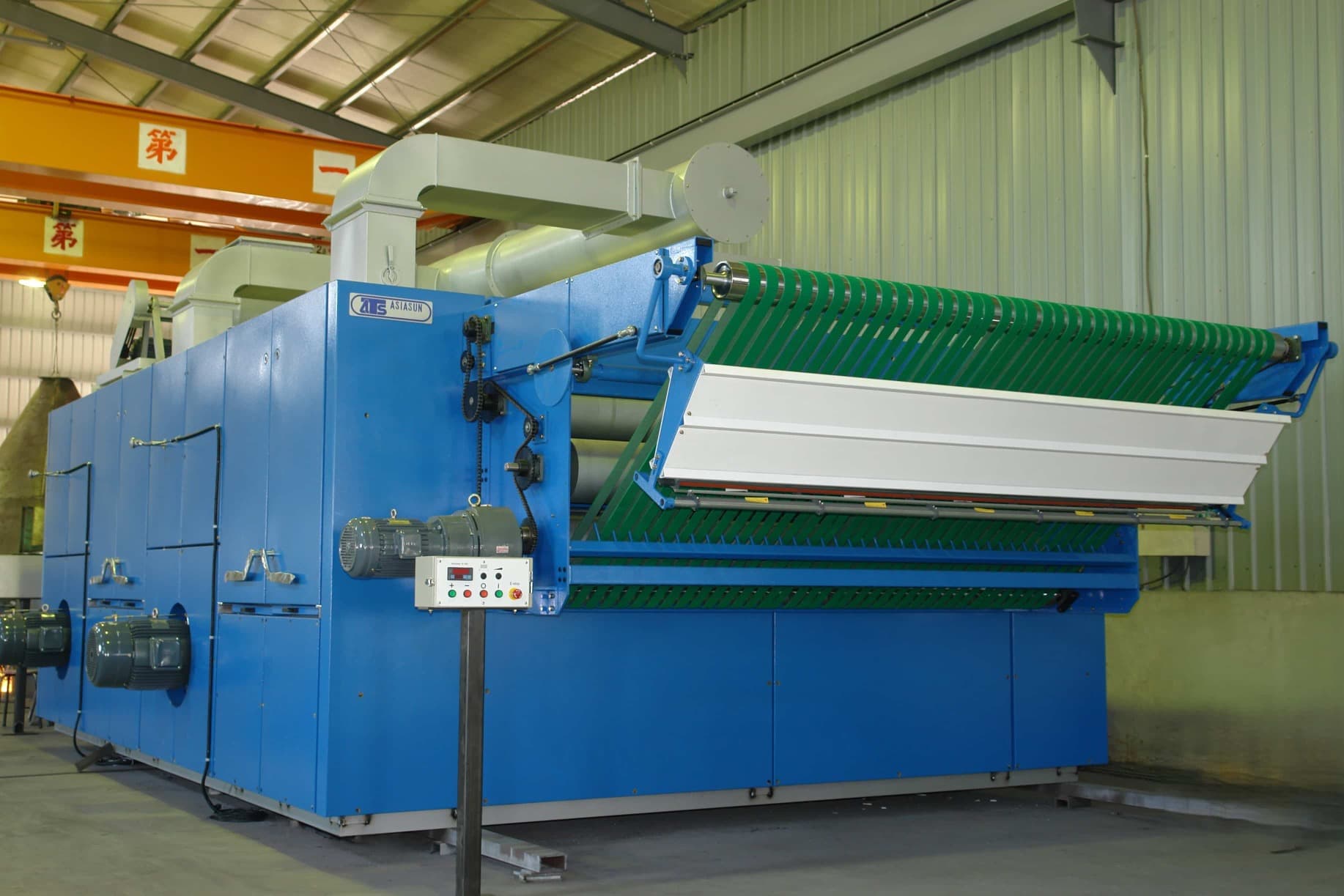

Relaxation Dryer
Relaxation Dryer
01
Key Features & Advantages
- Each chamber has length of 200CM. Three-layer dryer can be fitted directly into the container, easy for transportation and installation.
- Uniform air distribution across the left, center, and right zones ensures the fabric floats smoothly in a wave-like motion during drying.
- Precise belt alignment system prevents belt deformation and avoids fabric overlapping, ensuring complete and uniform drying.
- Equipped with fabric overfeed and spreading system to prevent overlapping or creasing, which would cause incomplete drying.
02
Specifications
| Conveyor Belt Width | 230CM – 350CM, 20CM per increment |
| Drying Layer | 1 – 5 layers can be customised |
| Heating System | Thermal oil, Steam, Direct and Indirect Gas Heating Maximum temperature 180°C |
